Deauth Sleuth
Touchscreen ESP32 Wi-Fi monitoring firmware by ATOMNFT.
V1: Fully Functional
ESP32 Wi-Fi monitor
Monitor deauth activity with a sharper UI.
Deauth Sleuth is a touchscreen ESP32 Wi-Fi monitoring project for the ESP32-2432S028R. It watches nearby 802.11 traffic in promiscuous mode, highlights deauthentication and disassociation activity, and presents live status with touch controls, alert visuals, SD logging, and RGB LED feedback in a cleaner futuristic layout.
Deauth / disassoc detection

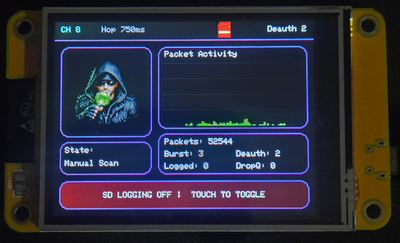

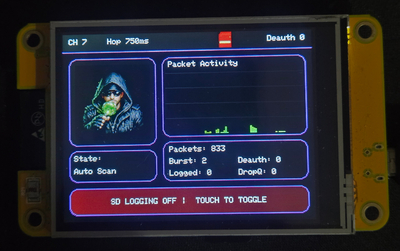

Auto + manual scan modes

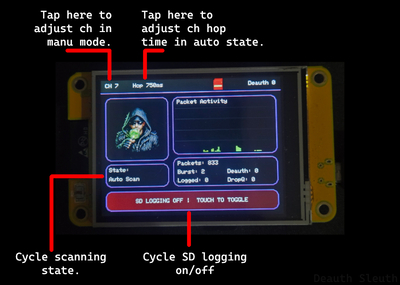

Touch UI + SD CSV logging
ESP32 CHEAP YELLOW DISPLAY
Arduino + TFT_eSPI

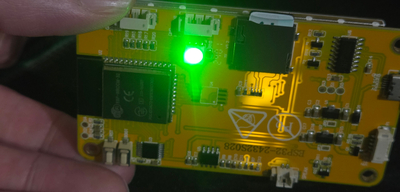

Touch UI, RGB status, SD logs
Deauth Sleuth firmware
Install directly from the real Deauth Sleuth github repo for CYD and CYD2USB builds.
USB setup
Use a data-capable USB cable and close Arduino IDE, serial monitors, or any app already holding the COM port before using the web flasher.
Browser support
For web flashing, use a current Chromium-based browser such as Chrome or Brave. Other browsers may not support the required Web Serial features.
